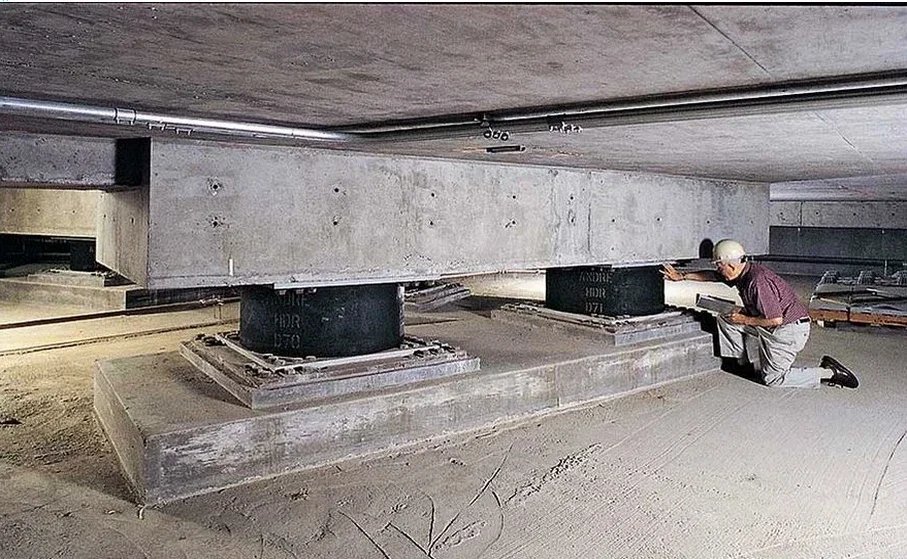

San Diego sits within 150 kilometers of the Rose Canyon Fault, a right-lateral strike-slip system capable of producing a magnitude 6.9 event. The 2019 Ridgecrest sequence reminded Southern California engineers that distant ruptures still deliver sharp acceleration demands to soft-soil basins. A base isolation seismic design decouples the superstructure from ground motion, cutting spectral acceleration demands by 50 to 70 percent compared to fixed-base assumptions. The approach suits essential facilities, historic retrofits, and new construction on the marine terrace deposits that underlie downtown, Mission Valley, and the I-5 corridor. Our team applies ASCE 7 Chapter 17 and the isolation provisions of the California Building Code to develop site-specific isolation systems—lead-rubber bearings, friction pendulum sliders, or hybrid configurations—matched to the geotechnical conditions found across San Diego County.
An isolation system tuned to San Diego’s basin-edge effects can drop base shear below the wind-governed threshold, making the superstructure design far more efficient.
Service characteristics in San Diego
Local geotechnical conditions in San Diego
San Diego’s coastal microclimate introduces a risk often underestimated in isolation design: salt-laden air accelerates corrosion in exposed bearing components. Elastomeric isolators with external steel plates need protective coatings tested per ASTM B117 for salt-spray resistance; friction pendulum surfaces require stainless-steel overlays that resist pitting over a 50-year service life. The marine influence also means that sites within 3 kilometers of the bay or ocean can encounter shallow groundwater with elevated sulfate content. If the isolation plane sits near the water table, we specify sulfate-resistant materials for the pedestals and moat walls. Another local factor is the interaction between the soft bay-mud pockets in the downtown Embarcadero area and the long-period pulses that propagate through deep sedimentary basins—a scenario where base isolation must be paired with solid geotechnical mitigation to avoid excessive residual drift in the moat.
Our services
The isolation design process integrates closely with site characterization and structural modeling. We deliver three interconnected work packages for San Diego projects:
Isolation system concept design
Selection of bearing type, target period, and damping based on geotechnical data and performance objectives. Includes preliminary isolator sizing and moat geometry definition.
Nonlinear time-history analysis
Full 3D modeling of the isolated structure with site-specific ground motion suites. We scale and match records to the USGS deaggregation for San Diego coordinates.
Peer review and testing specification
Preparation of prototype and production test protocols per ASCE 7 Section 17.8. We coordinate with independent review panels and testing laboratories.
Frequently asked questions
What is the typical cost range for a base isolation seismic design in San Diego?
Engineering fees for the design phase typically range from US$4,020 to US$8,600, depending on structural complexity and the number of ground motion suites required. Prototype testing of isolators is a separate cost borne by the manufacturer.
Which San Diego building types benefit most from base isolation?
Essential facilities (hospitals, fire stations), data centers, historic masonry structures, and high-value commercial buildings with sensitive equipment. The Rose Canyon Fault proximity makes isolation particularly cost-effective for buildings where post-earthquake functionality is mandatory.
How do you determine the site-specific ground motions for San Diego?
We use the USGS Unified Hazard Tool to obtain the MCEr response spectrum at the site coordinates, then deaggregate to identify the dominant magnitude-distance pairs. Ground motion records are selected from the PEER NGA-West2 database and spectrally matched to the target spectrum over the period range of interest for the isolated structure.
Does base isolation eliminate the need for geotechnical investigation?
No. The isolator properties depend directly on the subsurface stiffness profile. We require VS30 measurements, bearing capacity at the isolation plane, and liquefaction screening for saturated sands. The geotechnical report feeds directly into the soil-structure interaction parameters used in the time-history model. More info.
